Model Generation and Simulation

Software Outline

The Circulatory_Autogen project ([project_dir]) contains five folders as presented below:

  • resources: Contains example config csv files that define models ([file_prefix]_vessel_array.csv), parameters ([file_prefix]_parameters.csv), parameters to calibrate ([file_prefix]_params_for_id.csv), and ground truth data to calibrate towards ([file_prefix]_obs_data.json) for generating and calibrating models.
  • src: Containts the source code for autogeneration, parameter id, and other utilities.
  • user_run_files: Includes bash run files for the user and the user_inputs.yaml file, which is the main config file for the run settings.
  • funcs_user: Contains user defined functions for calculating ouput features from model outputs, for fitting to ground truths. The corresponding src file, which contains other available functions to use in the parameter id is [project_dir]/src/param_id/operation_funcs.py. This directory also contains functions for user defined cost functions.
  • module_config_user: Contains user defined units, cellml modules, and configuration files for those cellml modules. This allows the user to create their own modules and specify how they can be coupled with other modules. The corresponding src dir, which contains all of the src modules and config files is [project_dir]/src/generators/resources/

Note

For recommended use, the user should create a separate [CA_user_dir] for the specific model they are creating. In dir there should be the following:

  • **[file_prefix]_user_inputs.yaml
  • resources: Contains the config csv files that defines model connection network ([file_prefix]_vessel_array.csv) and parameters ([file_prefix]_parameters.csv) that will be generated and config files to prescribe the parameters to calibrate ([file_prefix]_params_for_id.csv) and the ground truth to calibrate towards ([file_prefix]_obs_data.json).

The following folders will be generated in [CA_user_dir] (or [project_dir] if user_inputs_path_override isn't defined) after running model autogeneration and parameter identification.

  • generated_models: Includes the generated code for the models that have been automatically generated. It also contains the generated models with parameters that have been fit with the parameter identification code. These models can be run in OpenCOR or through OpenCOR's version of Python.
  • param_id_output: Includes all of the outputs from the parameter identification simulations, including predicted parameter values, minimum costs, standard deviations of parameters (if doing MCMC) and plots of the fitting results and parameter distributions.

Model Generation

This section shows how to generate your desired model. There are several examples to show the generality of the circulatory_autogen software.

The following are the steps for model autogeneration.

  1. Create the vessel_array and parameters files in CSV format for the intended model. Standard names of vessel and parameters files are [model name]_vessel_array.csv and [model name]_parameters.csv, respectively.

    Those files should be added to your resources directory which is set with resources_dir in your [CA_user_dir]/[file_prefix]_user_inputs.yaml (or [project_dir]/user_run_files/user_inputs.yaml if user_inputs_path_override isn't defined).

Note

The standard location for the resources dir is `[CA_user_dir]/resources

Info

If the name of your model is 3compartment, the user files needed for generation are:

  • 3compartment_vessel_array.csv
  • 3compartment_parameters.csv

Note

You can refer to the section Designing a new model for more details on creating vessel_array and parameters files.

  1. Go to the [CA_user_dir] and open the [file_prefix]_user_inputs.yaml to edit. You can use gedit, nano, vim or your editor of choice to edit the file. file_prefix should be the name of your model. Subsequently, input_param_file should be equal to [file_prefix]_parameters.csv as shown below.

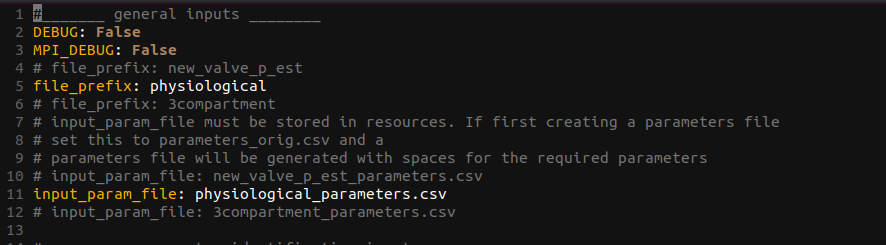

    user_inputs.yaml file

  2. To run the autogeneration, navigate to the user_run_files directory and run the below command.

    ./run_autogeneration.sh

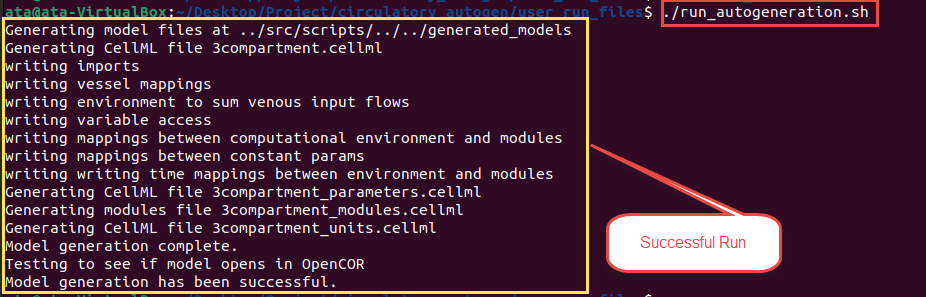

    As shown below, this will create CellML files for the generated model and test that the simulation runs. Consequently, If there are no errors, it shows the "Model generation has been successful." message at the end.

Note

Alternatively, you can use an IDE of your choice, set the python path equal to the opencor_pythonshell_path (see getting started and run script_generate_with_new_architecture.py from [project_dir]/src/scripts

Run autogeneration output

  1. Generated CellML files are located in the [generated_models_dir]/[file_prefix] directory. (The generated_models_dir defaults to [project_dir]/generated_models unless you set generated_models_dir in [project_dir/user_run_files/user_inputs.yaml).

    Four CellML files, and a CSV file will be generated. The CSV file includes the model parameters and the four CellML files contain the modules, parameters, units and constants, and main model.

    Generated files

    Info

    For a typical autogeneration, the parameters.csv file will be the same as the parameters.csv file in [project_dir]/resources directory. However, when the parameter identification is run, it will contain the identified parameter values.

Note

There is a test for the autogeneration running. To run the test, navigate to user_run_files and run the below command.

./run_test_autogeneration.sh

Model Simulation

Once you have generated the models, open OpenCOR and open the generated [file_prefix].cellml, which is the main CellML file. This file automatically incorporates the [file_prefix]_modules.cellml, [file_prefix]_parameters.cellml and [file_prefix]_units.cellml files.

When it is opened, click on the Simulation tab (highlighted with a yellow box in the below image). If there is no error, OpenCOR shows you a new page where models can be simulated. (If there is an error specific to the cellml code then it will be shown here.)

Model Simulation

Several individual parts on this page are:

  • Simulation settings
  • ODE solver settings
  • Parameters and variables
  • Run control
  • Run diagnostics
  • Graphs and results

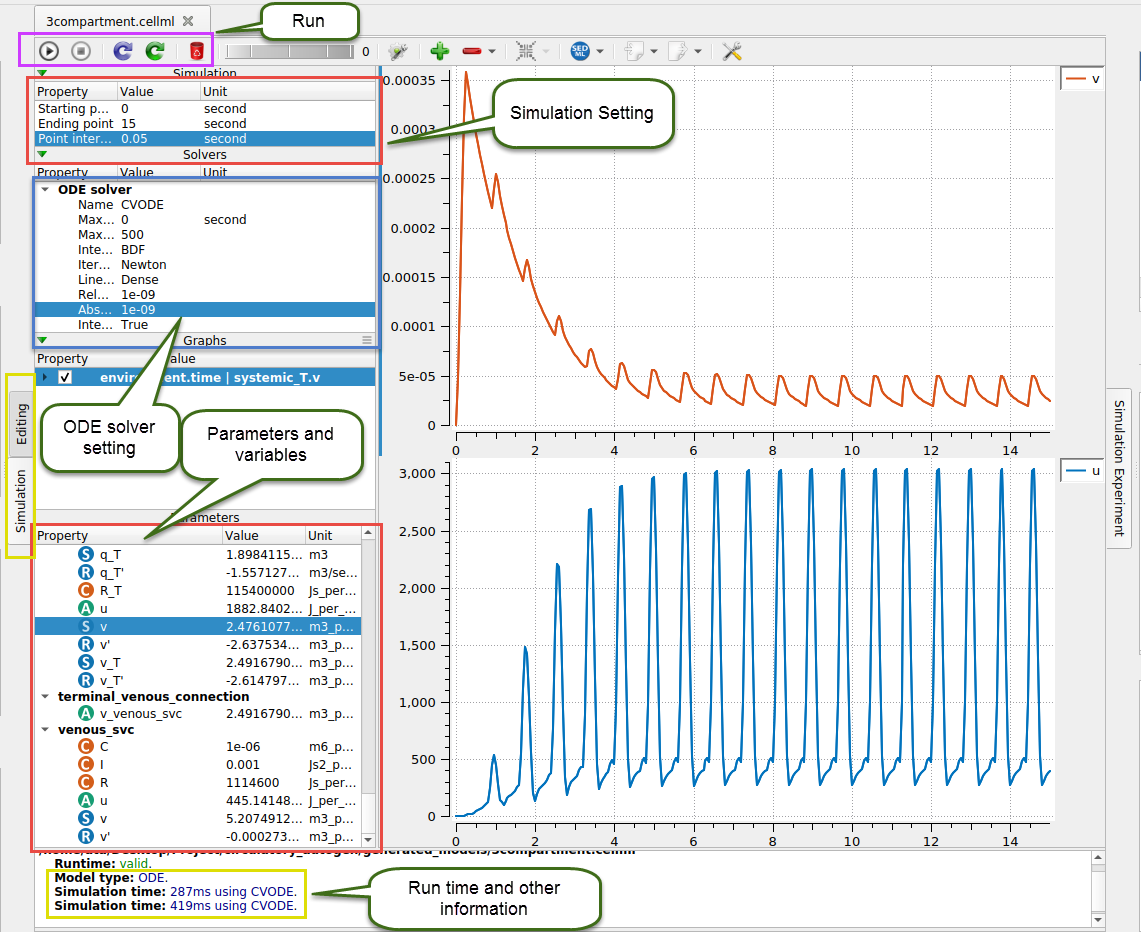

You should set the simulation's starting, ending, and data output step size. Also, if you have a stiff problem you may need to set the maximum_time_step to a small value.

ODE solver settings contains many settings related to the solver such as maximum step size, iteration method, absolute and relative tolerance, name of solver, etc. (shown in the blue box in the above image.)

The parameters and variables section shows all constant and variable parameters that are used in the model (See section Creating a new model for more information on setting up parameters). You can plot variables by right-clicking each parameter you want for the y-axis and then choosing the x-axis variable (eg: time).

The run control is on the top left section, as shown in the purple color box in the image. Click on the triangle button to run. For further control, see the OpenCOR Tutorial.

The results will be shown after running the model. These results include run-time, settings, and other related parameters, as shown in the yellow box at the bottom of the image.
